FITTINGS & ACCESSORIES

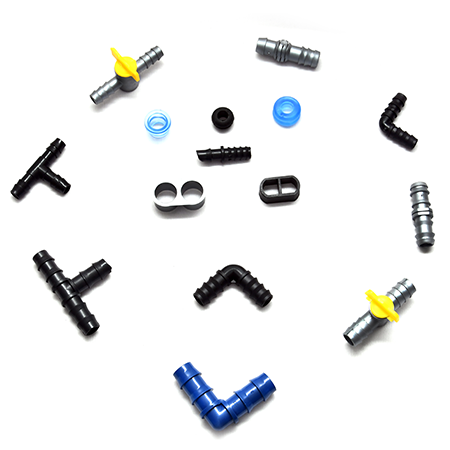

DRIP FITTINGS
  • Grommet - forms the leak proof seal between the Take Out and Sub line (PVC) (12,16mm).
  • Take Out - connects Lateral and Sub line (PVC) (12,16mm).
  • End Cap - closes the lateral line end & is used to flush out lateral lines.
  • Barbed Tee - is used to divert laterals in two ways i.e. divert the laterals in T shaped direction.
  • Barbed Elbow - is used to divert laterals in L Shape.
  • Barbed Connector - is used to connect two ends laterals (12, 16, 20mm).
  • Barbed Tap - is used to ON/OFF water flow in lateral. These are used between Sub line and Laterals.
  • Dummies - are the plug to close the unwanted hole/punches in the drip line/lateral.
  • Barbed Reducer - is used to connect 16mm laterals to 12mm laterals.

DRIP FITTINGS

SPRINKLER FITTINGS

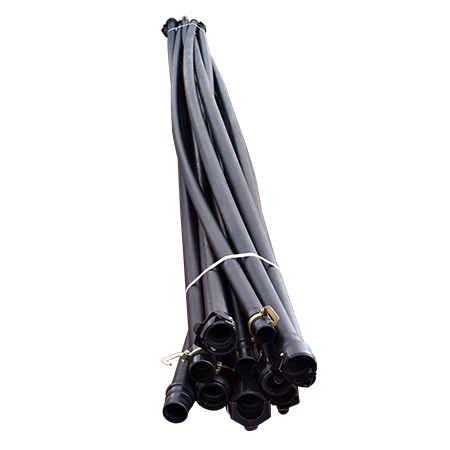

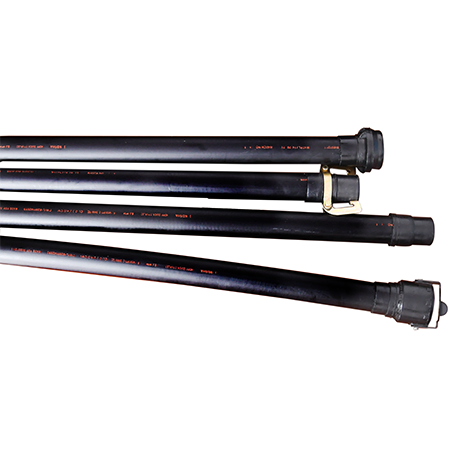

  • HDPE QRC Pipe
    • Pipes made out of High Density Polyethylene with Quick Released Couple (QRC) are used to convey the water from the source to Sprinklers by running all over the field.
    • They are easy to move from place to another.
    • They are not heavily weighed, thus can be handled easily.
    • They durable in field.
    • They can withstand adverse climatic condition.
    • They are easy to connect and dismantle because of QRC. QRC are two types Easy/Single Lock and Double/Twin Lock.

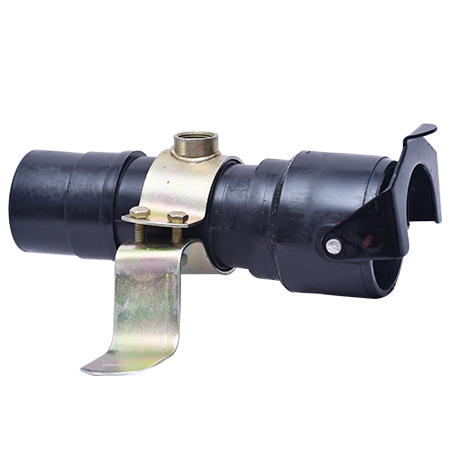

  • Service Saddle - It is either called as Foot Batten Assembly, these forms a rigid platform to the Nozzle system and acts as the connector to GI Raiser pipe and HDPE pipes.

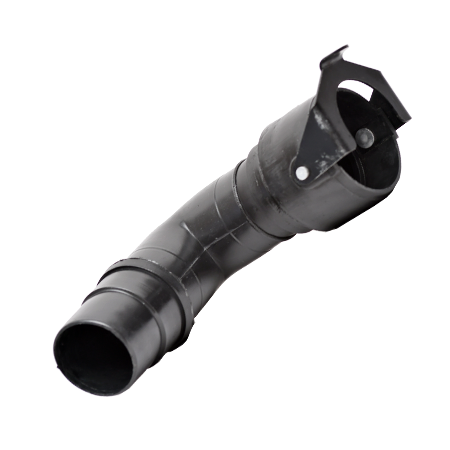

  • HDPE Bend - As per the requirement of the layout, this can be used to change the course of direction of HDPE pipe to angle of 90°.

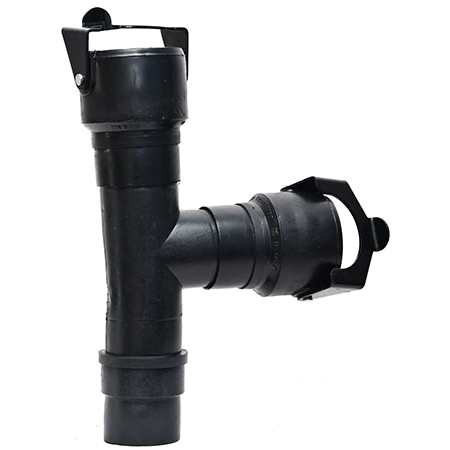

  • HDPE Tee - This act as a splitter of the HDPE Pipe at the place of requirement.

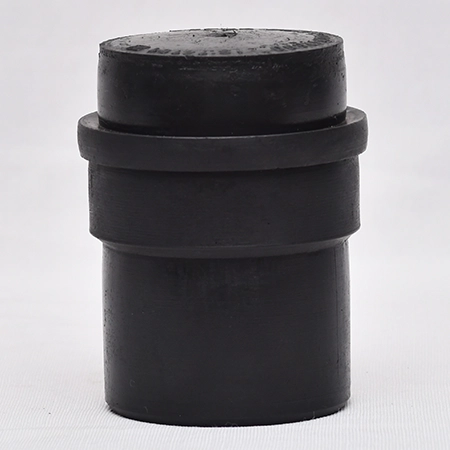

  • HDPE End Cap - This used as an end/stopper to the running line of HDPE pipe.

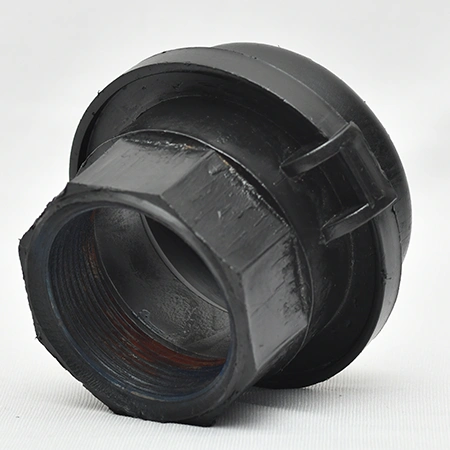

  • PCN - This is used to connector from threaded to QRC or vice versa.
  • Sprinkler Nozzle - This major part of the system, which convert the stream line flow of water in the pipe into trajectory movement of water i.e. similar to rainfall.

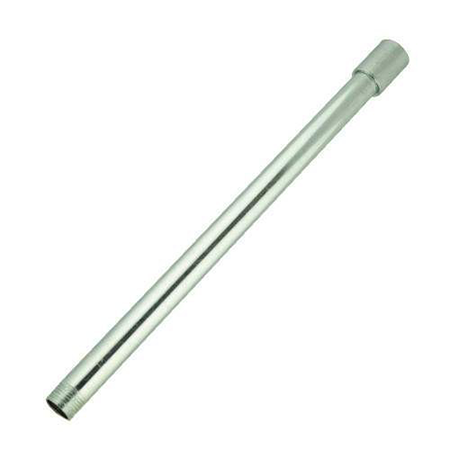

  • GI Raiser - As the name it is Galvanised Iron (GI) pipe used to elevate/raise the nozzle as per the requirement of the crop.

HDPE QRC PIPE

HDPE QRC PIPE

SERVICE SADDLE

HDPE BEND

HDPE TEE

HDPE END CAP

PCN

SPRINKLER NOZZLE

GI RAISER

RAIN GUN FITTINGS
  • Tripod Stand - Three legged stand to raise/elevate the rain gun and support the gun and raiser pipe from pressure caused by the trajectory movement of the water thrown out of the gun.

TRIPOD STAND

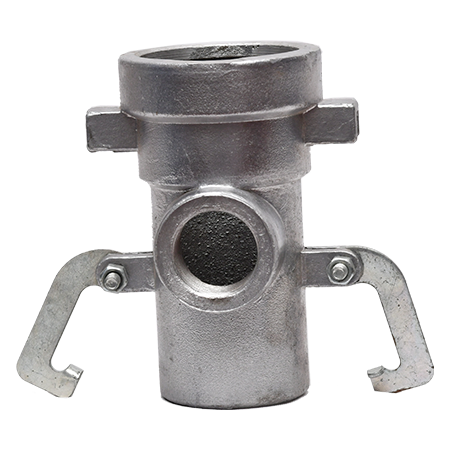

FOOT BATTEN ADAPTER

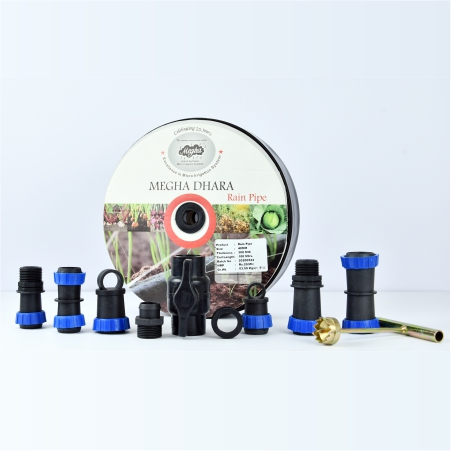

MEGHA DHARA FITTINGS
  • Ball Valve Threaded (32/40mm) - To Control the flow of water in the system.
  • Adaptor (32/40mm) - Used to connect Female threaded connection to MEGHA DHARA pipe.
  • End Cap (32/40mm) - To close the line of MEGHA DHARA. It also helps to flush out the water. In addition, it’s equipped with hook to hold the system from unwanted displacement.
  • Joiner (32/40mm) - Used to join two MEGHA DHARA pipes or used to rectify if there is any damage in the pipe.
  • Grommet (32/40mm) - Used to leak proof seal between the Take out and Pipe .
  • Take Out (32/40mm) - Acts as connection PCV/HDPE to the Megha Dhara Pipe with adopter in between the Take Out and Megha Dhara.
  • Hex Nipple (32/40mm) - Used to connect Male threads to another Male thread.
  • Drill Bit (32/40mm) - Used to make perfect hole in the Main line so as to plug the grommet easily and prevent the leakage in the system.

MEGHADHARA FITTINGS
